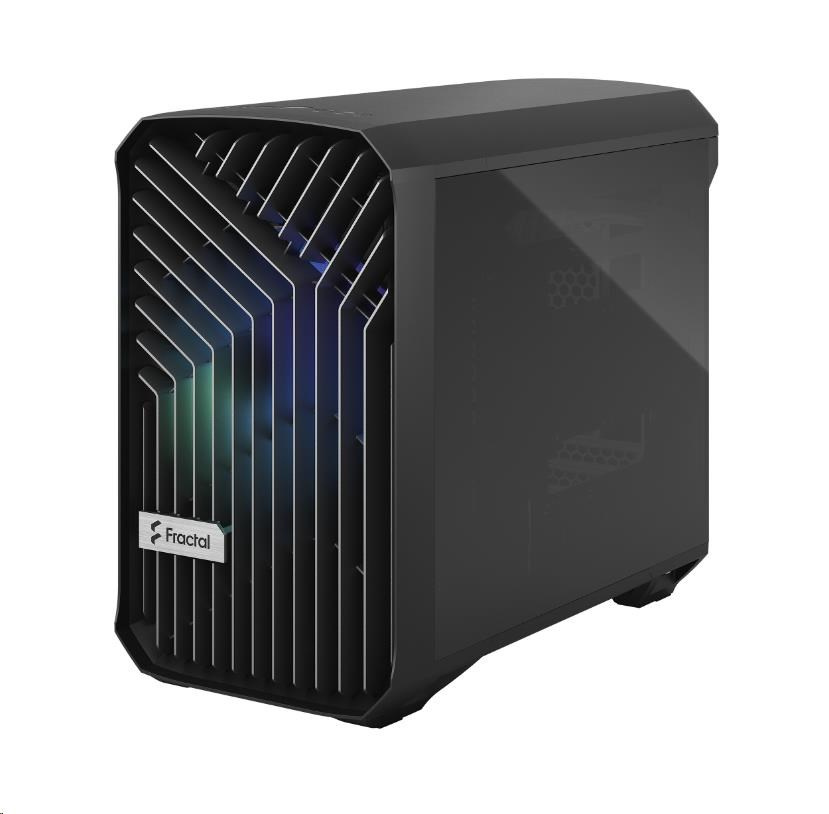

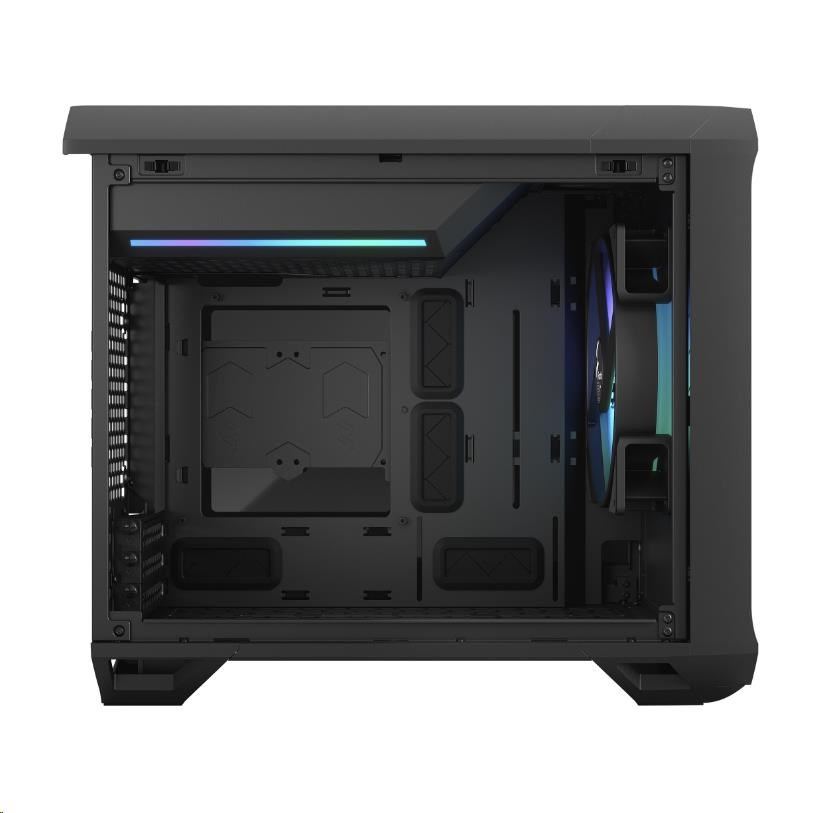

FRACTAL DESIGN skříň Torrent Nano RGB Black TG Light Tint, USB 3.1 Type-C, 2x USB 3.0, bez zdroje, mITX
Popis a parametre
FRACTAL DESIGN skříň Torrent Nano RGB Black TG Light Tint, USB 3.1 Type-C, 2x USB 3.0, bez zdroje, mITX
Torrent Nano

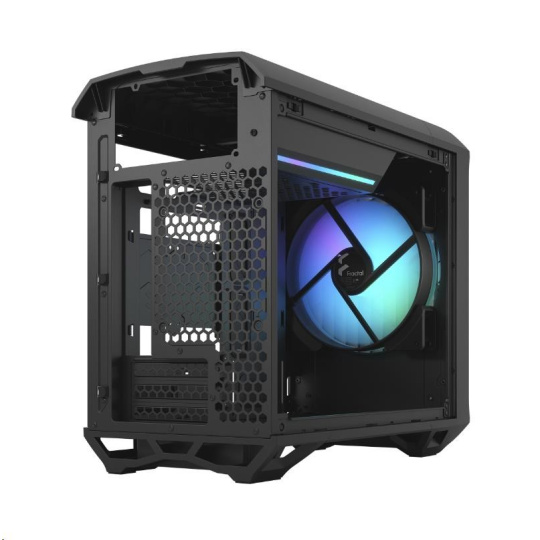

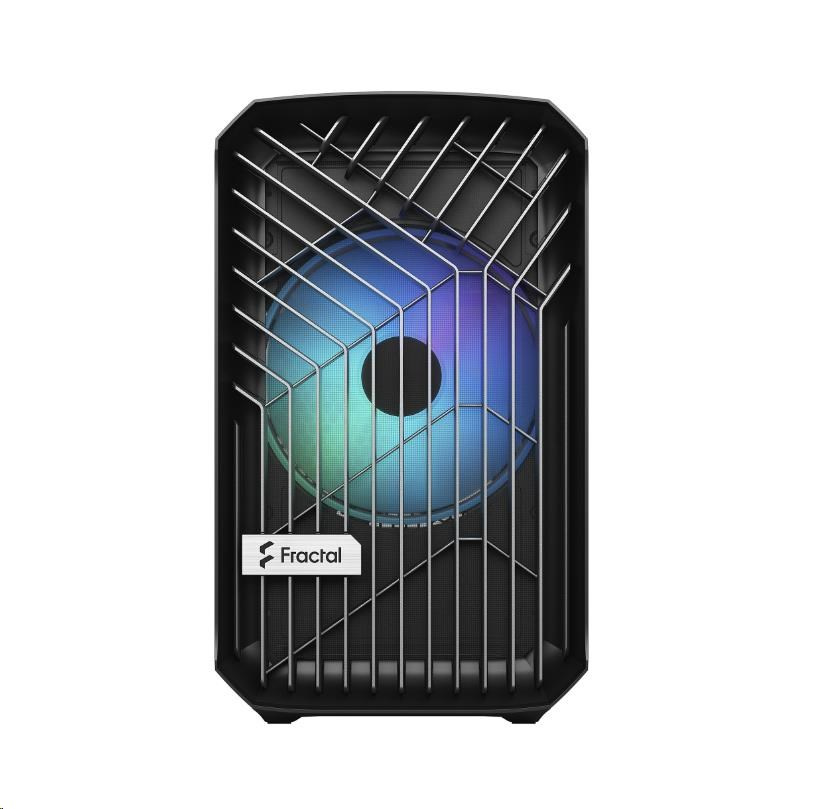

The Torrent Nano is built to maximize cooling potential straight out of the box. Main standouts include an unobstructed base intake, an open front grille and one of our 180 x 38 mm Dynamic PWM fans (Prisma for RGB version) custom-made to achieve maximum air cooling while maintaining controlled noise levels.

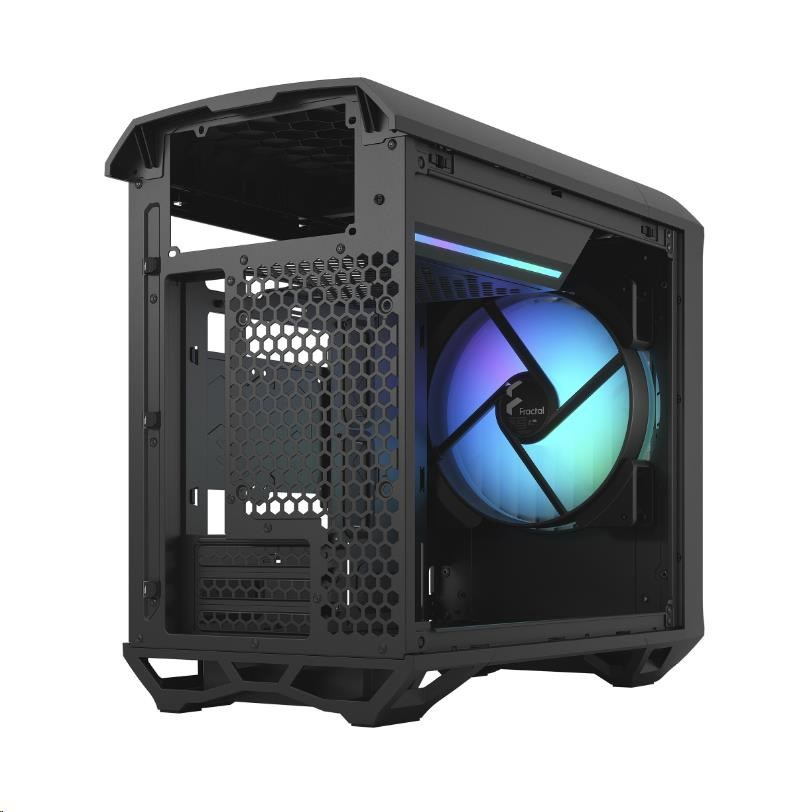

- Open grille and 180 mm front fan optimized for maximum air intake
- Fractal Design 180 x 38 mm fan leverages power, size, and thickness for massive air-moving capacity
- Space optimized, yet still capable of handling up to 3-slot thick 335 mm long GPUs
TECHNICAL SPECIFICATIONS
| 3.5"/2.5" drive mounts | 1 (included) |
| Dedicated 2.5" drive mounts | 2 (included) |
| Expansion slots | 3 |

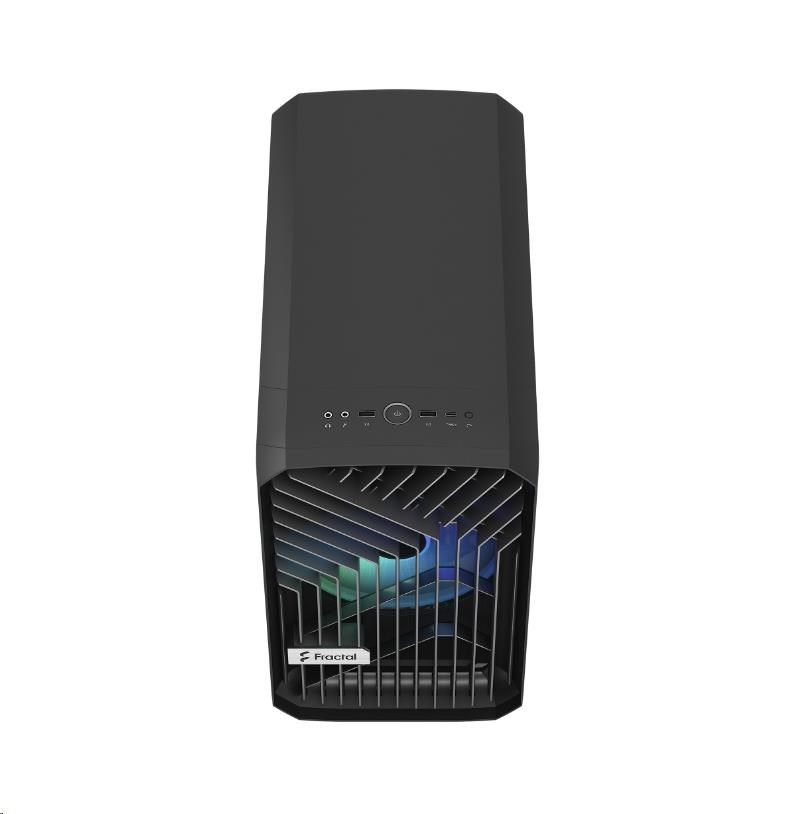

| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio |
| Total fan mounts | 1x 180 mm, 4x 140 mm, or 5x 120 mm (with included brackets) |
| Front fan | 1x 180 mm or 2x 140/120 mm (with included bracket) (1x Dynamic GP-18 included in standard versions, 1x Prisma AL-18 included in RGB version) |
| Dust filters | Front, Bottom |
| Cable routing grommets | Yes |
| Fixed cable straps | Yes |
| Tool-less push-to-lock | Side panels |
| Captive thumbscrews | HDD and SSD brackets |
| Left side panel | Steel or Tempered glass (RGB version: Tempered glass only) |
| Right side panel | Steel or Tempered glass (RGB version: Tempered glass only) |
| Compatibility | |
| Motherboard compatibility | mITX / mDTX |
| Power supply type | ATX |
| Bottom fan | 2x 140/120 mm (not included) |
| Front radiator | Up to 240/140 mm |
| Rear fan | 1x 120 mm (not included) |
| Rear radiator | 120 mm |
| Bottom radiator | Up to 240/280 mm |
| PSU max length | 200 mm |
| GPU max length | 335 mm with front fan mounted |
| Cable routing space | 29 mm |
| CPU cooler max height | 165 mm |
| Dimensions | |
| Case dimensions (L x W x H) | 417 x 222 x 374 mm |
| Net weight | BK TGD/TGL: 6.0 kg, WT TGC: 5.8 kg, BK Solid: 5.5 kg |
| Package dimensions (L x W x H) | 446 x 300 x 538 mm |
| Gross weight | BK TGD/TGL: 7.8 kg, WT TGC: 7.5 kg, BK Solid: 7.2 kg |
.
ParametrePridať do porovnania
Počet pozic 3.5" (HDD)
1
Počet pozic 2.5" (SSD)
2
Vybavení PC skříně
Bez integrovaného zdroje
Vybavení PC skříně
Přední USB panel
Vybavení PC skříně
Přední Audio panel
Bočnice
Prosklená
