GIGABYTE MB Sc LGA1200 H470M K, Intel H470, 2xDDR4, 1xHDMI, mATX

Formát:micro ATX; Chipset:Intel H470; Socket (pätica):Socket 1200; Typ pamäťového modulu:DDR4; Podpora RAID:0, 1, 5; PCI express 16x:1.... viac
Bežná cena: 64.6  (-0%)
53.67 € bez DPH
Na dotaz
64.4 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Kód: 524689
Kód dod.: H470M K
EAN: 4719331849634
Záruka: 36 Měsíc(ů)
Výrobca: Gigabyte
Popis a parametre

GIGABYTE MB Sc LGA1200 H470M K, Intel H470, 2xDDR4, 1xHDMI, mATX

H470M K

Intel® Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5

  • Supports 11th/10th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
  • GbE LAN with Bandwidth Management
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

CPU

LGA1200 package:
11th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors
L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

Intel® H470 Express Chipset

Memory

11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots

CPU:
1 x PCI Express x16 slot:
Supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

Chipset:
1 x M.2 connector:
Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD
2 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 5
Intel® Optane™ Memory Ready

USB

Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper

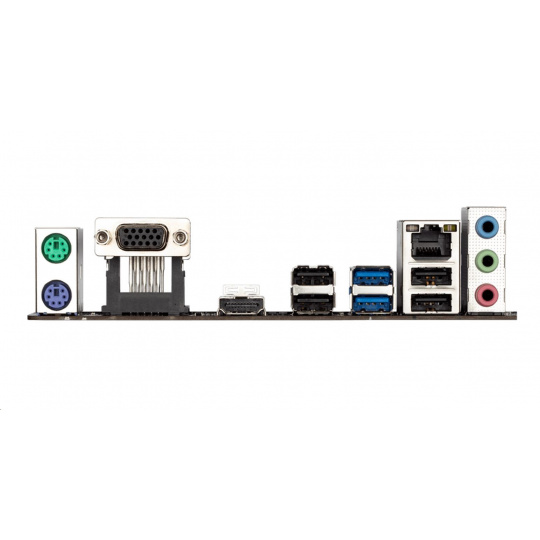

Back Panel Connectors

1 x HDMI 1.4 port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 22.6cm x 18.5cm

Remark

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

.
Technologie paměti RAM
DDR4
Socket (patice)
Socket 1200
Formát základní desky
micro ATX
Chipset
Intel H470
PCI Express x16
1
Podpora RAID
0
Podpora RAID
1
Podpora RAID
5
3.5mm Jack
Ano
Pro procesory
Intel
Počet paměťových slotů
2
DisplayPort
0
USB 2
6
USB 3
4
M.2 slot
1
SATA 3
2
VGA
0
DVI
0
HDMI
1
Led Header
Ano
PCI Express x1
1
LAN
1Gbit/s
DisplayPort Type-C
0
