SKU Number

P55272-421

Model Name

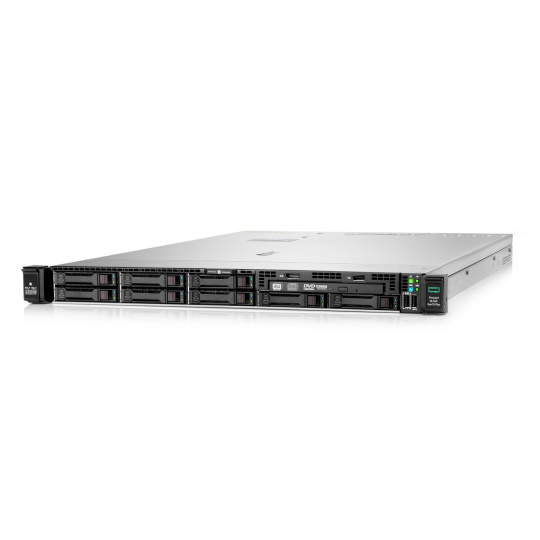

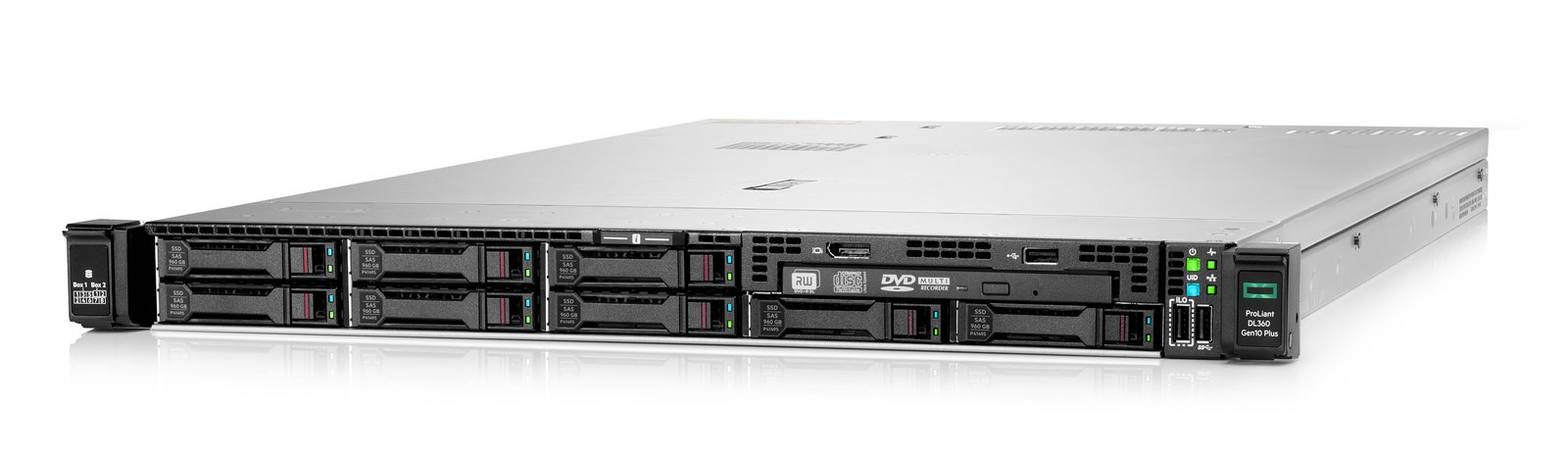

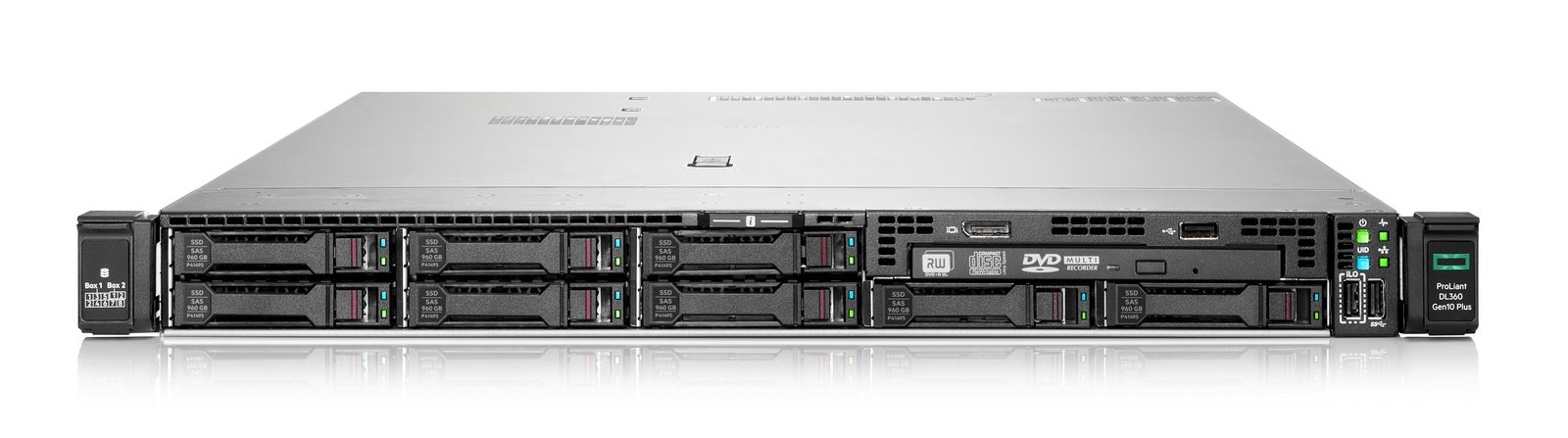

HPE ProLiant DL360 Gen10 Plus 4309Y 2.8GHz 8-core 1P 32GB-R S100i NC 8SFF 800W

Chassis

8SFF

Backplane

8SFF 12G x1 SAS UBM2 BC

Processor

4309Y (8-Core, 2.8 GHz, 105W)³

Number of CPU

One processor with standard heatsink

Memory

32 GB RDIMM 2R 3200 MT/s (1x 32 GB) & 31 DIMM blanks Notes: Runs at 2667 MT/s due to processor limitation.

Network Controller

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE Notes: No embedded networking

Storage Controller

HPE SR100i Gen10 Plus FIO Software RAID/VROC SATA⁴

Hard Drive

None included

Optical Drive

Not included (Optical Drive options available)

PCIe Slots

2 PCIe: 1 x16 FH, 1 x16 LP

Power Supply

1x 800W Titanium

Fans

5 - Standard

Management

HPE iLO 5

Security

TPM (Trusted Platform Module) Notes: Disabled on AA1 SKUs

Rail Kit

Easy Install w/o CMA Notes: Server does not support shelf mounted rail kits ("L" brackets).

Form Factor

1U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.
