LENOVO Precision Pen 2 (Laptop)
Popis a parametre

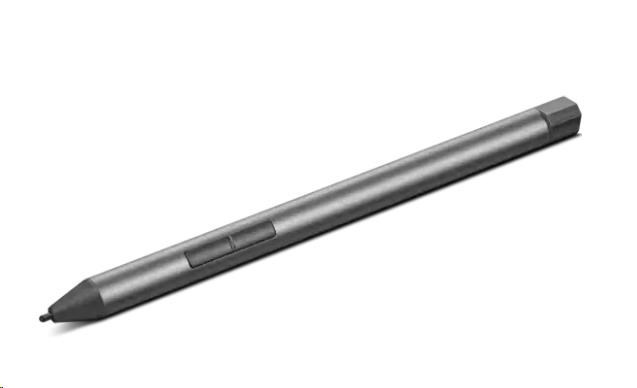

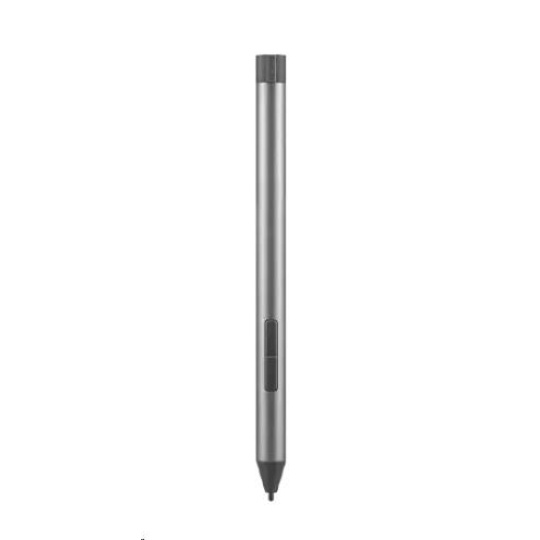

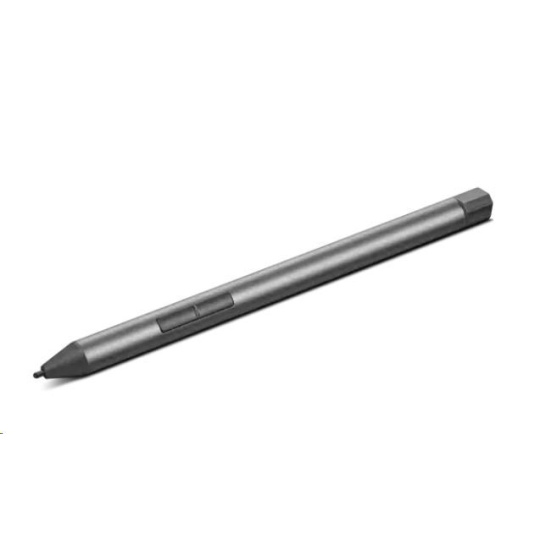

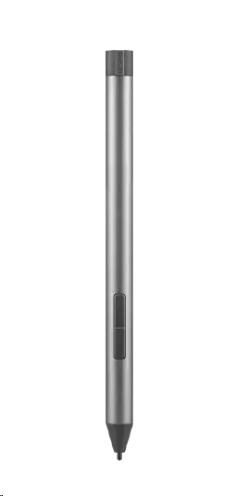

LENOVO Precision Pen 2 (Laptop)
Produkt: Lenovo Digital Pen 2 (Laptop )
Part Number: GX81J19854
| Tech Specs | |
| Shipment Group | Common Warranty*1User Guide*1Lenovo Precision Pen 2 *1 |
| Other Electrical Specifications | Pen tip output voltageWGP protocol : Nominal 20 [V] MPP2.0 protoco : Nominal 20 [V] AES2 .0 / 1.0 protocol : Nominal 17 [V] |
| JAN | 4571592108048 |
| EAN | 0195892068983 |
| UPC | 195892068983 |
| Smart Find Visibility | Yes |
| Warranty Type | Consumer |
| Warranty Period | 1year |
| Other Operating Environment | Storage environment (in packaged condition) Temperature: -10 ~ +55 C Humidity : +30 ~ +80 % (no condensation |
| Maximum Relative Humidity (%) | 80% |
| Minimum Relative Humidity (%) | 30% |
| Maximum Operating Temperature | 40? |
| Minimum Operating Temperature | 5? |
| Packed Weight | 100g |
| Packed Dimensions (L x D x H) | 220*55*20 |
| Included Accessory | Common Warranty*1 User Guide*1 Lenovo Precision Pen 2 (Laptop) |
| Package Type | Retail Box |
| Product Weight | Including battery: Approximately 15.0 [g] |
| Diameter | 9.65mm |
| Length | 150±0.5mm |
| Power Requirement | Li-ion Polymer Battery (No replacement) Supply Voltage:4.4~5.25[V] Supply current:100[mA] |
| Agency Approvals | CE FCC VCCI RCM NCC BSMI KCC |
| Color | Black |
| Shifting Time to Sleep | Condition: Tip switch / Side switch free Shift to Sleep mode after approximately 10 [min.] Condition: Tip switch or / and Side switch press Shift to Off mode after approximately 4 [min.] |
| Presure Resolution | Up to 4096 levels , depends on touch IC’s F/W setting |
| Oscillating Frequeqncy | AES2.0 /1.0 protocol : 1800 kHz ± 5% MPP 2.0 : 18 ~ 210 [kHz] WGP: 86 ~ 400 [kHz] / 8 channels |
| Touch Technology | Electronic stylus |
| Input Rating Voltage | 4.4V |
| Battery Charging Time | Approximately 150 [min.] at Room Temperature |
| Battery Life | 246H-1754H |
| Supported OS | Windows 10 |
| Brand | Lenovo |
| Part Numbers | |
| Marketing Sales Part Numbers | Description |
4X81H95637 | Lenovo Precision Pen 2 (Laptop) |
ompatibility
Operating System
OS Independent
Compatible Machines
| Description | MT | Footnote |
| IdeaPad Duet 3 11IAN8 | 82XK | Not original inbox pen but there is no problem on functionality, only performance may not be as good as original inbox pen.This pen can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot |
| IdeaPad Duet 5 12IAU7 | 82TQ | |
| IdeaPad Duet 5 12IRU8 | 83B3 | Not original inbox pen but there is no problem on functionality, only performance may not be as good as original inbox pen.This pen can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot |
| ThinkPad L13 Gen 3 (Intel) | 21B3 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 21B4 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad L13 Yoga | 20R5 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 20R6 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad L13 Yoga Gen 2 (AMD) | 21AD | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 21AE | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad L13 Yoga Gen 2 (Intel) | 20VK | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 20VL | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad L13 Yoga Gen 3 (AMD) | 21BB | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 21BC | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad L13 Yoga Gen 3 (Intel) | 21B5 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 21B6 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad L13 Yoga Gen 4 (AMD) | 21FR | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 21FS | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad L13 Yoga Gen 4 (Intel) | 21FJ | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 21FK | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad P1 Gen 3 | 20TH | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 20TJ | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad P1 Gen 4 | 20Y3 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 20Y4 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad P1 Gen 5 | 21DC | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 21DD | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad P15 Gen 1 | 20ST | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 20SU | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad P15 Gen 2 | 20YQ | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 20YR | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad P16 Gen 1 | 21D6 | |
| 21D7 | ||
| ThinkPad P16 Gen 2 | 21FA | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 21FB | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad X1 Extreme Gen 3 | 20TK | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 20TL | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad X1 Extreme Gen 4 | 20Y5 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 20Y6 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad X1 Extreme Gen 5 | 21DE | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 21DF | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad X1 Fold 16 Gen 1 | 21ES | |
| 21ET | ||
| ThinkPad X1 Titanium Yoga Gen 1 | 20QA | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 20QB | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad X1 Yoga Gen 6 | 20XY | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 20Y0 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad X1 Yoga Gen 7 | 21CD | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 21CE | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad X1 Yoga Gen 8 | 21HQ | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 21HR | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad X12 Detachable | 20UV | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 20UW | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad X12 Detachable Gen 2 | 21LK | |
| 21LL | ||
| ThinkPad X13 Yoga Gen 2 (Intel) | 20W8 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 20W9 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad X13 Yoga Gen 4 | 21F2 | |
| 21F3 | ||
| ThinkPad Z13 Gen 1 | 21D2 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 21D3 | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad Z13 Gen 2 | 21JV | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. |
| 21JW | 377.Can only support writing on the touch screen system that support stylus function, and cannot be charged or stored in the pen slot. | |
| ThinkPad Z16 Gen 1 | 21D4 | |
| 21D5 | ||
| ThinkPad Z16 Gen 2 | 21JX | |
| 21JY | ||
| Yoga 7 14ARP8 | 82YM | |
| Yoga 7 14IRL8 | 82YL | |
| Yoga 7 16IRL8 | 82YN | |
| Yoga 9 14IAP7 | 82LU | |
| Yoga 9 14IRP8 | 83B1 | |
| Yoga 9 2-in-1 14IMH9 | 83AC | |
| Yoga Slim 9 14IAP7 | 82T0 |
.
