MSI MB Sc LGA1700 MPG Z690 CARBON WIFI, Intel Z690, 4xDDR5, 1xDP, 1xHDMI, WI-FI

Socket (pätica):Socket 1700; Chipset:Intel Z690; Typ pamäťového modulu:DDR5; Formát:ATX; PCI express 16x:Více než 1; Integrovaná grafická karta:Ano (CPU); Integrovaná LAN karta:1; Ďalšie rozhranie:WiFi.... viac
373.83 € bez DPH
Na dotaz
448.6 €
ks
Kód: 2648193
Kód dod.: MPG Z690 CARBON WIFI
EAN: 4719072886530
Záruka: 36 Měsíc(ů)
Výrobca: MSI
Popis a parametre

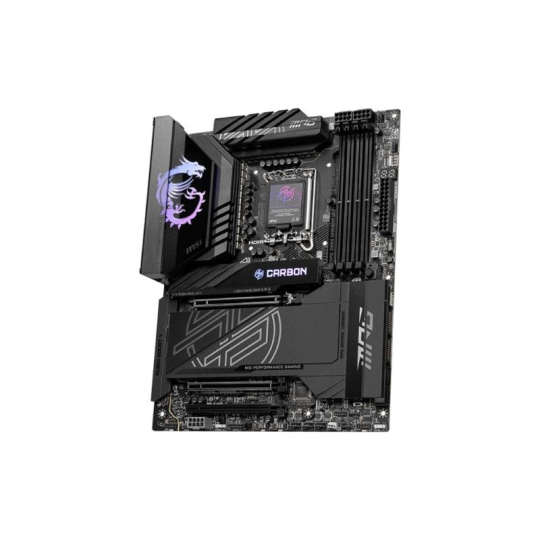

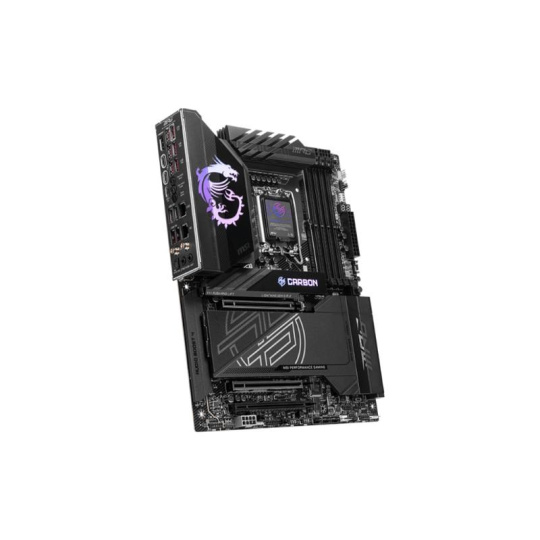

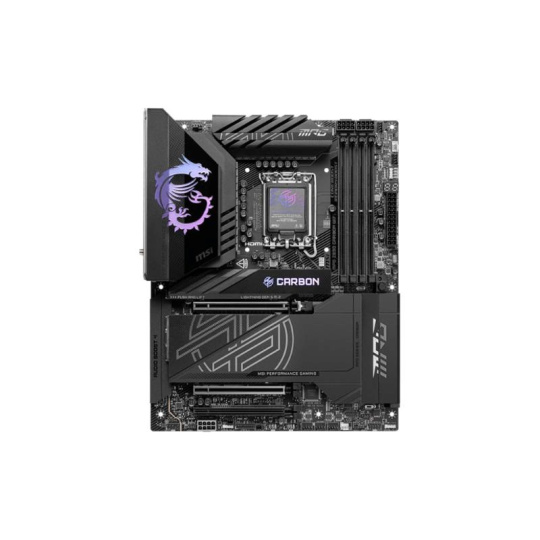

MSI MB Sc LGA1700 MPG Z690 CARBON WIFI, Intel Z690, 4xDDR5, 1xDP, 1xHDMI, WI-FI

MPG Z690 CARBON WIFI

  • Premium Thermal Design - Heavy plated mosfet heatsink withc heat-pipe / high quality 7W/mK mosfet thermal pads / extra choke thermal pads / onboard M.2 Shield Frozr
  • Lightning Gen 5 - The latest PCIe 5.0 solution with up to 128 GB/s bandwidth for maximum transfer speed
  • Wi-Fi 6E - The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
  • 2.5G Network Solution - Featuring premium 2.5G LAN with LAN manager to deliver better network experience
  • Lightning USB 20G - Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4x faster than UAB 3.2 Gen 1.
  • Core Boost - With premium layout and fully digital power design to support more cores and provide better performance
  • Memory Boost - Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Audio Boost 5 - Isolated audio with a high quality audio processor and amp for the most immersive gaming experience
  • 2oz Thickened Cooper PCB - An enhanced PCB design improves heat dissipation and performance reliability

Model Name

MPG Z690 CARBON WIFI

CPU Support

Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors

CPU Socket

LGA 1700

Chipset

Intel Z690 Chipset

Graphics Interface

2 x PCIe 5.0 x16 slots, 1 x PCIe 3.0 x16 slot
Support AMD CrossFire Technology

Memory Support

4 DIMMS, Dual Channel DDR5-6666+ (OC)

Storage

4 x M.2 Gen4 x4 64 Gbps slots, 1xM.2 Gen3 x4 32Gbps slot, supported Intel Optane Technology
6 x SATA 6Gbps

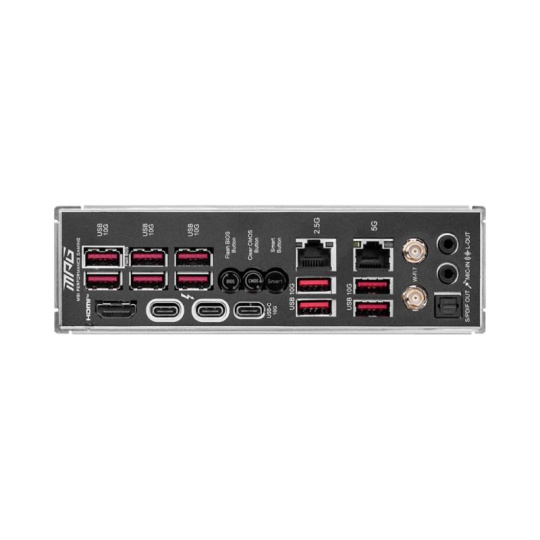

USB ports

1 x USB 3.2 Gen 2x2 20 Gbps (1 Type-C),
6 x USB 3.2 Gen 2 10 Gbps (5 Type-A + 1 Type-C),
2 x USB 3.2 Gen 1 5Gbps (2 Type-A),
8 x USB 2.0

LAN

Intel I225-V 2.5G LAN

Wireless / Bluetooth

Intel Wi-Fi 6E module, Bluetooth 5.2

Audio

8-Channel (7.1) HD Audio with Audio Boost 5

.
Typ pamäťového modulu
DDR5
Socket (pätica)
Socket 1700
Formát
ATX
Integrovaná grafická karta
Ano (CPU)
Chipset
Intel Z690
PCI express 16x
Více než 1
Integrovaná LAN karta
1
Ďalšie rozhranie
WiFi
Ďalšie rozhranie
Wi-Fi
