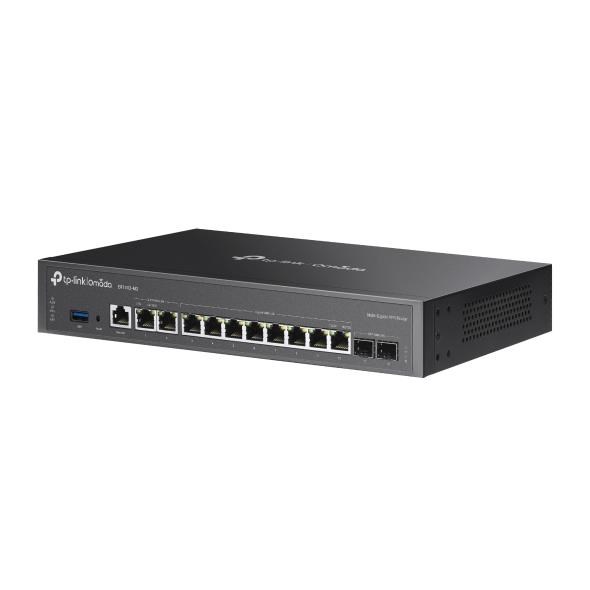

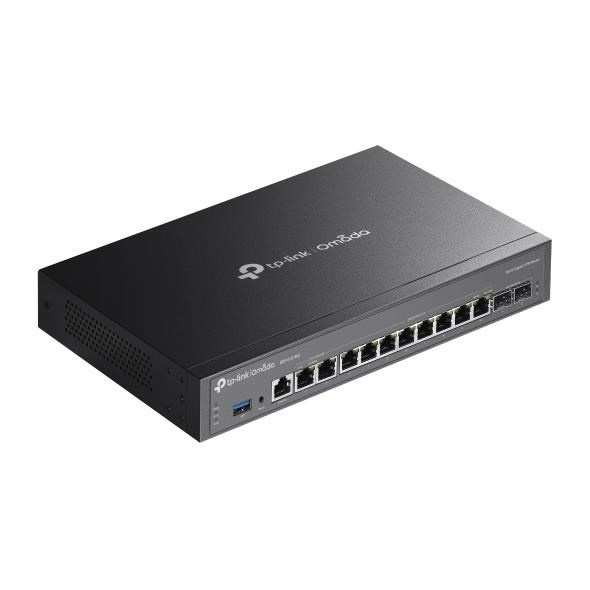

TP-Link ER7412-M2

Omada Multi-Gigabit VPN Router

• Čtyřjádrový procesor @2.0GHz
• 2× 2,5G RJ45 WAN/LAN porty
• 10× Gigabit WAN/LAN porty (2× SFP, 8× RJ45)
• 1× port USB 3.0 (podporuje úložiště USB a zálohování LTE pomocí LTE dongle)
• Až 11 WAN portů
• Vysoce zabezpečené SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
• Centralizovaná správa cloudu přes web nebo aplikaci Omada
• Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro lepší zabezpečení.

Více informací o Omada Cloud SDN>?

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-router-wired-router/er7412-m2/

Technické specifikace

• 1× RJ45 Console Port
• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)

SECURITY
Access Control	• Source/Destination IP-Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL
Filtering	• WEB Group Filtering§ • URL Filtering • Web Security§
ARP Inspection	• Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface	• 1× 2.5G RJ45 WAN/LAN Port • 1× 2.5G RJ45 WAN/LAN Port • 2× Gigabit SFP WAN/LAN Ports • 8× Gigabit RJ45 WAN/LAN Ports
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
Button	Reset Button
Power Supply	100–240 VAC, 50/60 Hz
Flash	128MB NAND
DRAM	1 GB DDR4
Dimensions ( W x D x H )	11.6×7.1×1.7 in (294×180×44 mm)
Protection	4 kV surge protection
Enclosure	Steel
Mounting	• Desktop • Rackmountable
Max Power Consumption	18.5W (With USB 3.0 connected)
PERFORMANCE
GRE	• Unencrypted: 1153.0 Mbps • Encrypted: 559.2 Mbps
WireGuard VPN	771.6 Mbps
Concurrent Session	1,000,000
New Sessions /Second	7
NAT (Static IP)	2345.71 Mbps / 2351.22 Mbps
NAT(DHCP)	2353.41 Mbps / 2353.40 Mbps
NAT(PPPoE)	2336.52 Mbps / 2336.08 Mbps
NAT (L2TP)	1937.53 Mbps / 1761.82 Mbps
NAT (PPTP)	1757.54 Mbps / 2011.33 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 1125.60 Mbps • ESP-SHA256-AES256: 1133.1 Mbps • ESP-SHA384-AES256: 1126.6 Mbps • ESP-SHA512-AES256: 1132.8 Mbps
OpenVPN	UDP: 266.2 Mbps
L2TP VPN Throughput	• Unencrypted: 2724.5 Mbps • Encrypted: 1018.4Mbps
PPTP VPN Throughput	• Unencrypted: 3035 Mbps • Encrypted: 534.6 Mbps
SSL VPN Throughput	263.1 Mbps
66 Byte Packet forwarding rate	1833 Mbps / 1835 Mbps
1,518 Byte Packet forwarding rate	2461 Mbps / 2461 Mbps
BASIC FUNCTIONS
WAN Connection Type	• Static IP/Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone	Modify WAN/LAN MAC Address†
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
Advanced Routing	• Static Routing • Policy Routing • RIP (available in Standalone Mode) • OSPF (available in Standalone Mode)
Bandwidth Control	IP/Port-based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection
NAT	• One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit	IP-based Session Limit
VPN
GRE	Only in Standalone Mode
SSL VPN	80 Tunnels
IPsec VPN	• 150 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (15)** • 150 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (15)** • 150 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (11)** • 121 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
AUTHENTICATION
Web Authentication	• No Authentication • Simple Password* • Hotspot (Local User/Voucher*/SMS*/Radius*) • External Radius Server • External Portal Server* • LDAP
MANAGEMENT
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery* • Batch Configuration* • Batch Firmware Upgrading* • Intelligent Network Monitoring* • Abnormal Event Warnings* • Unified Configuration* • Reboot Schedule*
OTHERS
Certification	CE, FCC
Package Contents	• ER7412-M2 • Power Cord • Quick Installation Guide • Rackmount Kit • RJ45 Console Cord
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0–45 ? (32–113 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% non-condensing

.
