TP-Link OMADA switch SG3428XMPP (24xGbE,4xSFP+,16xPoE+,8xPoE++,500W,1xconsole)
Popis a parametre
TP-Link OMADA switch SG3428XMPP (24xGbE,4xSFP+,16xPoE+,8xPoE++,500W,1xconsole)

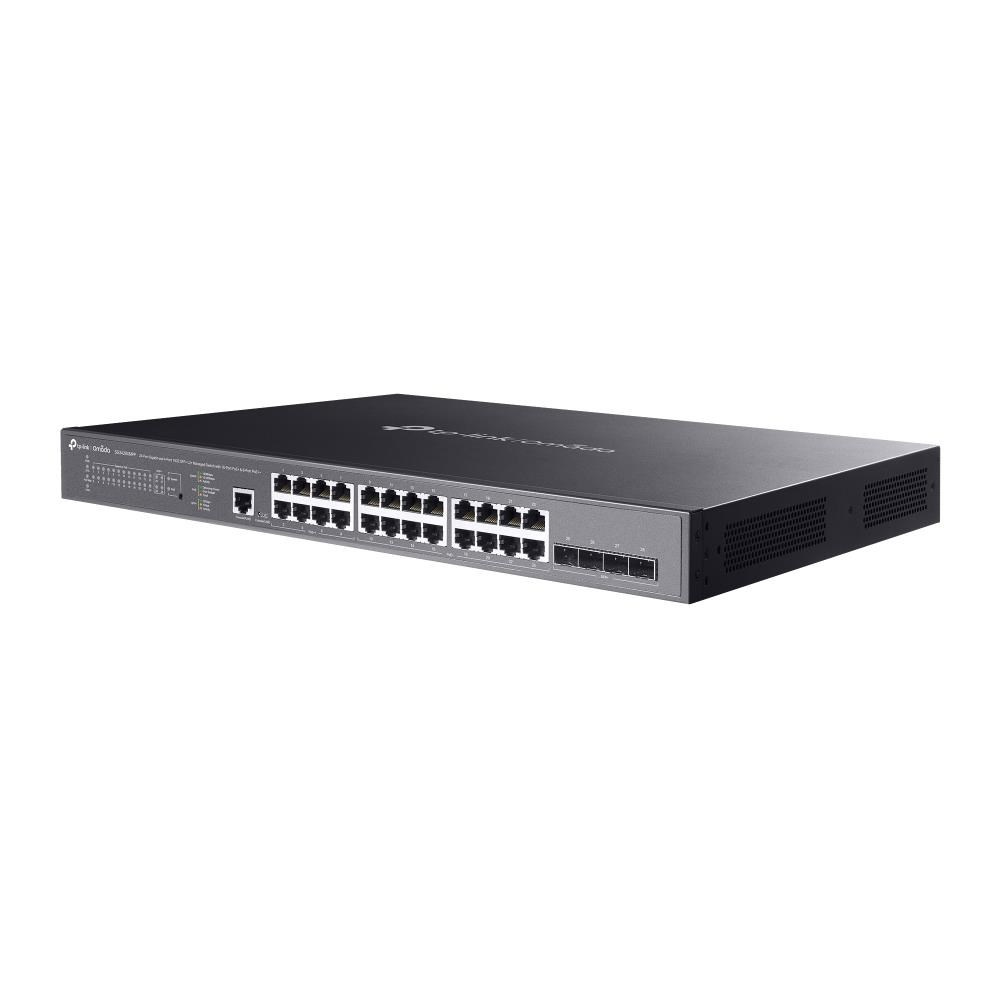

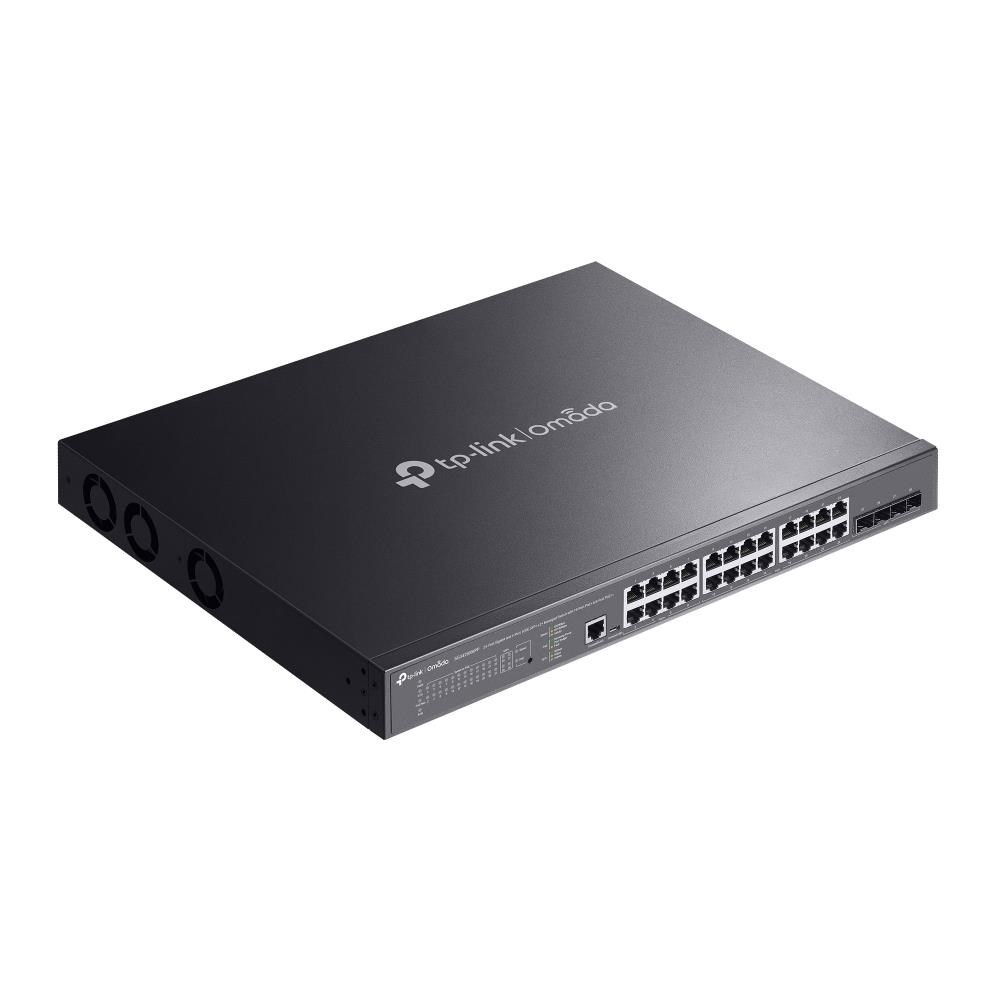

TP-Link switch OMADA SG3428XMPP
Omada 24portový gigabitový a 4portový 10GE SFP+ Managed switch L2+ s 16 porty PoE+ a 8 porty PoE++
- 4× 10 Gb/s SFP+ sloty
- 8× Gigabitové porty s podporou 802.af/at/bt PoE++ (Max 90 W rozpočet PoE pro každý port)
- 16× Gigabitové porty s podporou 802.3af/at PoE+ (Max 30 W rozpočet pro každý port)
- 500 W celkový rozpočet PoE*
- Centralizovaný cloudový management přes web nebo aplikaci Omada
- Samostatný management přes web, CLI, SNMP a RMON
- Statické směrování pro efektivní směrování interního provozu
- VLAN, ACL, QoS, IGMP Snooping, OAM a DDM
- ERPS podporuje rychlou ochranu a obnovu v kruhové topologii
- Odolné kovové pouzdro a design pro montáž do racku
Více informací o TP-Link PoE technologii >
Více informací o 10G Multi-Gigabit řešení >?
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-switch-l3-l2-managed/sg3452xmpp/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+) • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | 3 |
| Physical Security Lock | ? |
| Power Supply | 100-240 V AC~50/60 Hz |
| PoE Ports (RJ45) | • Standard: 802.3at/af/bt compliant • PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port) • PoE+ Ports: Ports 9~24 (up to 30 W PoE Output per Port) • Power Budget: 500 W* |
| Dimensions ( W x D x H ) | 17.3×13.0×1.7 in (440×330×44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | • 605.5 W (110V/60Hz) ( with 500 W PD connected) |
| Max Heat Dissipation | • 2064.96 BTU/hr (110 V/60 Hz) (with 500 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| L2 and L2+ Features | • 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 512 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring |
| L2 Multicast | • Supports 1000 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features**: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • DDM • sFlow |
| VLAN | • VLAN Group: Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN: VLAN Mapping, VLAN Replace • Voice VLAN |
| Access Control List | • Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL applies to Port/VLAN |
| Security | • IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard: 100 Entries • DoS Defend • DHCP Filter • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode • 802.1X - Port-based authentication - Mac-base authentication - VLAN Assignment - MAB - Guest VLAN - Radius authentication and accountability support • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • SG3428XMPP Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
ParametrePridať do porovnania
Provedení
Rack mounted 19"
Technologie
Gigabit ethernet + 10 Gigabit optika
Management
Web
Management
SNMP/RMON
Vlastnosti switche
Funkce POE po portech
Přenosová rychlost LAN (Mb/s)
1000
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
L2
Funkce
PoE (Power over ethernet)
Funkce
DHCP snooping
Funkce
Web management/Smart switch
Funkce
L2+
Podporované standardy PoE
802.3af
Podporované standardy PoE
802.3at
Podporované standardy PoE
802.3bt
Ventilátor
Ano
Počet portů LAN
24
Maximální počet portů
28
Počet SFP+ portů
4
PoE budget (W)
500
Počet PoE+ portů
16
Počet PoE++ portů
8
