Club3D Dokovací stanice USB-A a USB-C Dual Display 4K60Hz (6x USB 3.0/2x DP/Ethernet/USB-B/2x audio)

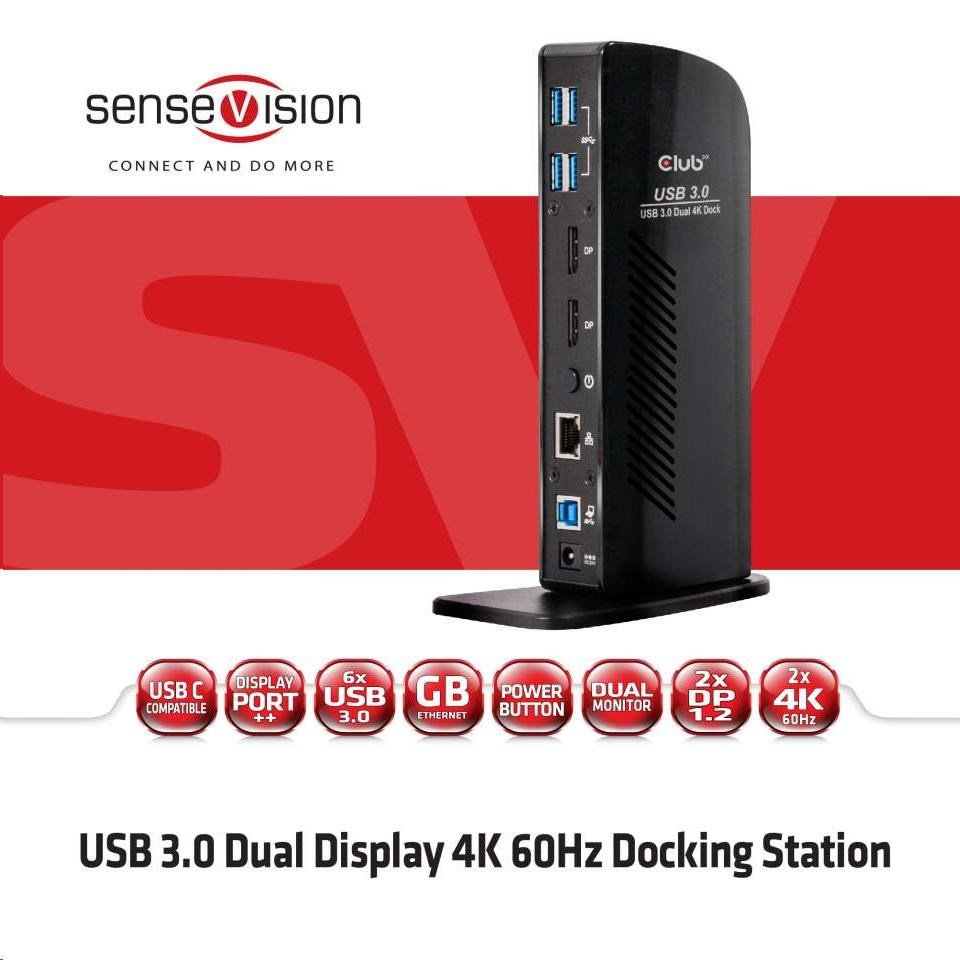

USB 3.0 Dual Display 4K60Hz Docking Station
CSV-1460 - The SenseVision USB 3.1 Gen 1 Dual Display 4K 60Hz Docking Station is designed to satisfy all your connectivity demands. It provides no less than 6 USB 3.1 Gen 1 Ports, Headphone connection, Microphone connection, Gigabit Ethernet port and 2 x Displayport™ outputs.
It is fully USB C compatible and a USB C cable is included in the box.
With this CSV-1460 you can now connect two Screens at 3840x2160 UHD at 60Hz resolution to almost all existing Notebooks or Tablets just by using a single USB 3.1 Gen 1 port! Featuring the advanced DisplayLink™ DL-6950 chip, you can even connect one screen at a resolution of 5K at 60Hz!
The SenseVision USB 3.1 Gen 1 Dual Display Docking Station has a convenient design and detachable stand, allowing it to be placed on your desk in horizontal- or vertical position. It's a productivity enhancing tool for any power user working in a (semi) professional environment.
Dual Mode DisplayPort™
The SenseVision USB 3.1 Gen 1 Dual Display 4K 60Hz Docking Station has 2 Displayport™++ outputs or in other words, Displayport™ 1.2 Dual Mode. This means that for the conversion of the video signal to DVI or HDMI™ passive cables or adapters must be used.
|Product Name ||USB 3.1 Gen 1 Dual Display 4K 60Hz Docking Station |
|Product Series ||SenseVision |
|Weight ||395g |
|Cable Length ||270 mm |
|Item Code ||CSV-1460 |
|EAN ||8719214470777 |
|UPC Code ||841615100965 |

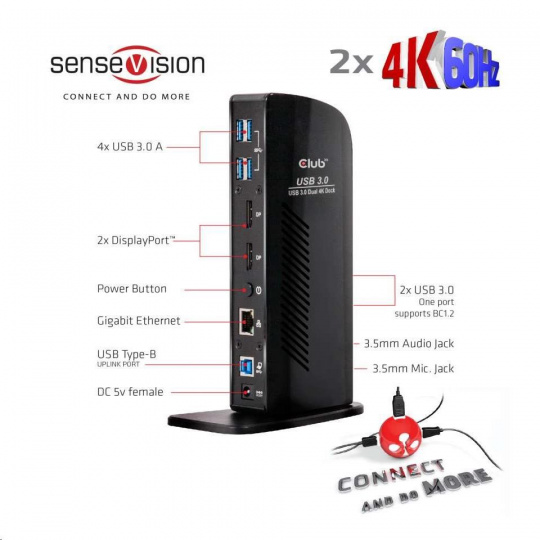

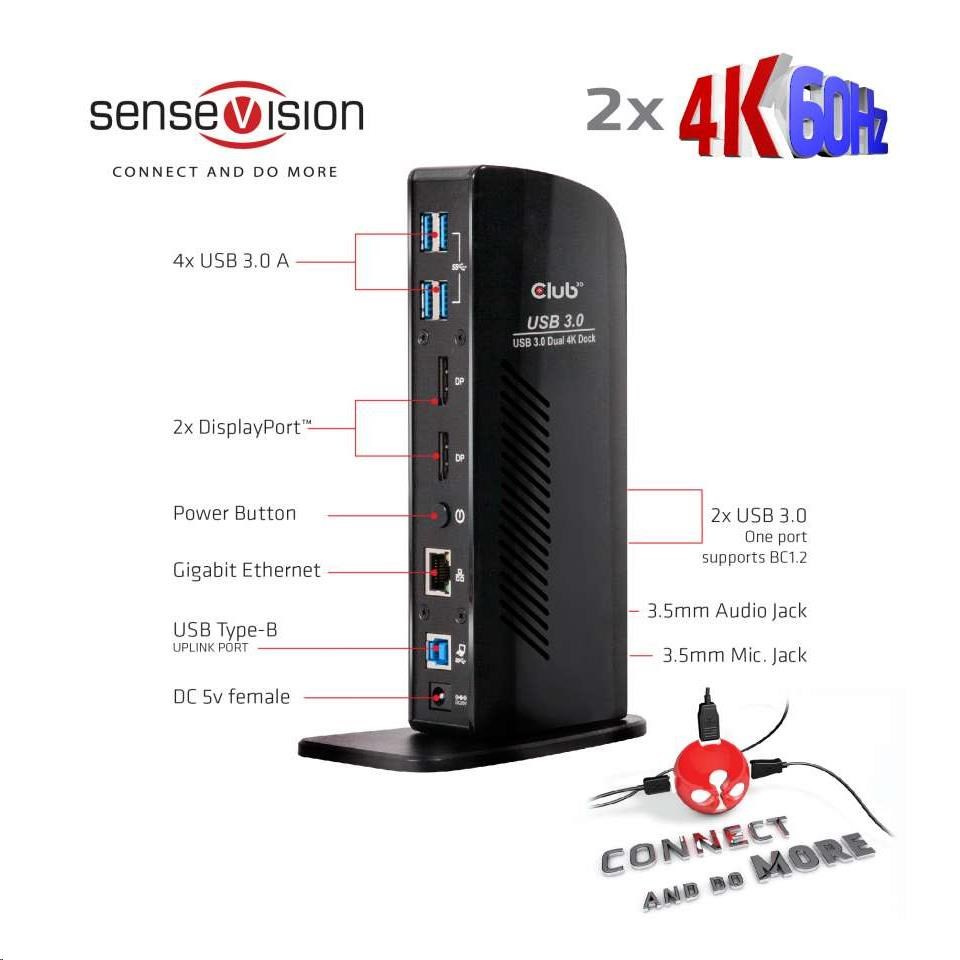

|Input ||1x USB 3.1 Gen 1 B male |
1x DC 5v female
|Output ||2x Displayport™ |
6x USB A 3.1 Gen 1
1x Gigabit Ethernet port
1x 3.5mm Audio jack 2.1 ch
1x 3.5mm Mic jack
|Features ||• Portable Universal USB 3.1 Gen 1 Dual Display 4K 60Hz Docking Station |
• Fully USB C compatibel with USB C cable included in the box
• DisplayLink™ DL-6950 chip inside
• Supports dual External monitors via Displayport™
• Max supported resolution up to:
For Single Screen Setup: 5120x2880 @ 60Hz
For Dual Screen Setup: 2 x 3840x2160 @ 60Hz
• USB 3.1 Gen 1 downstream port x 6 (BC 1.2 quick charging x1)
• Supports Gigabit Ethernet (10/ 100/ 1000Mbps)
• Audio: 2 x 3.5 mm Jack for Headphone and Microphone

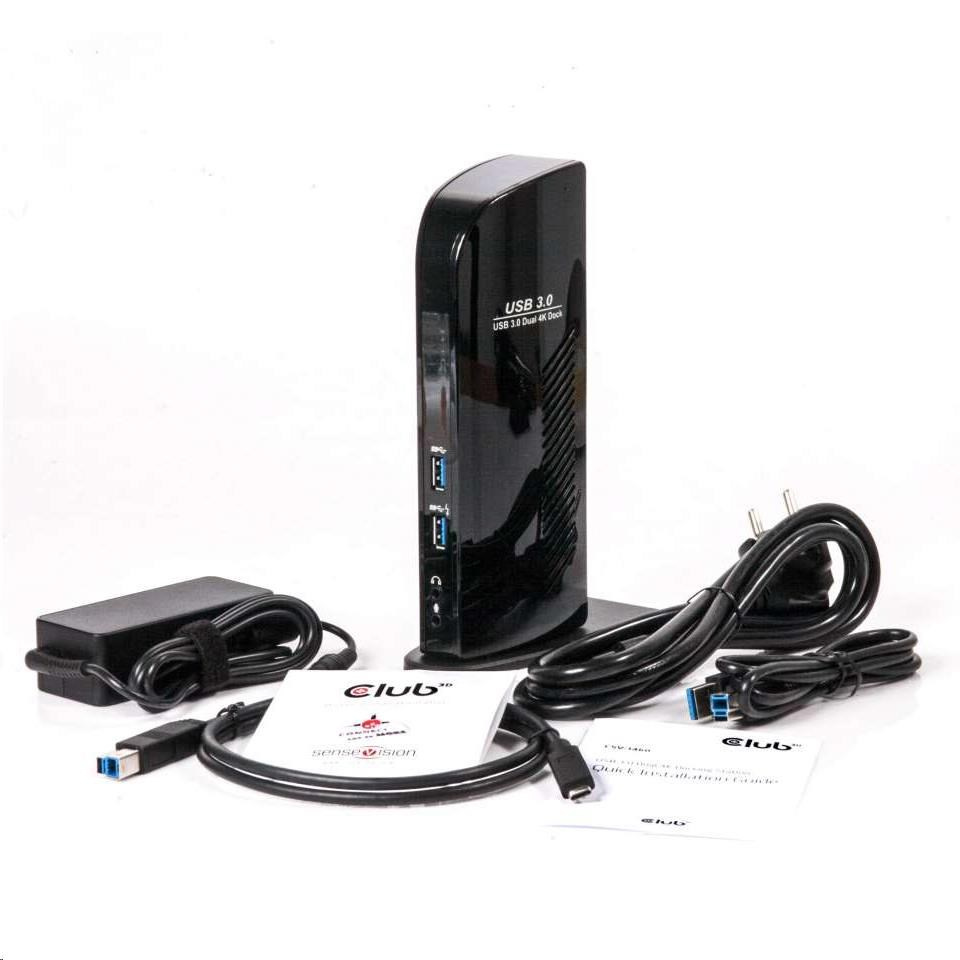

|Package Contents ||USB 3.1 Gen 1 Dual Display 4K 60Hz Docking Station |
Power Adapter 20V/2.25A

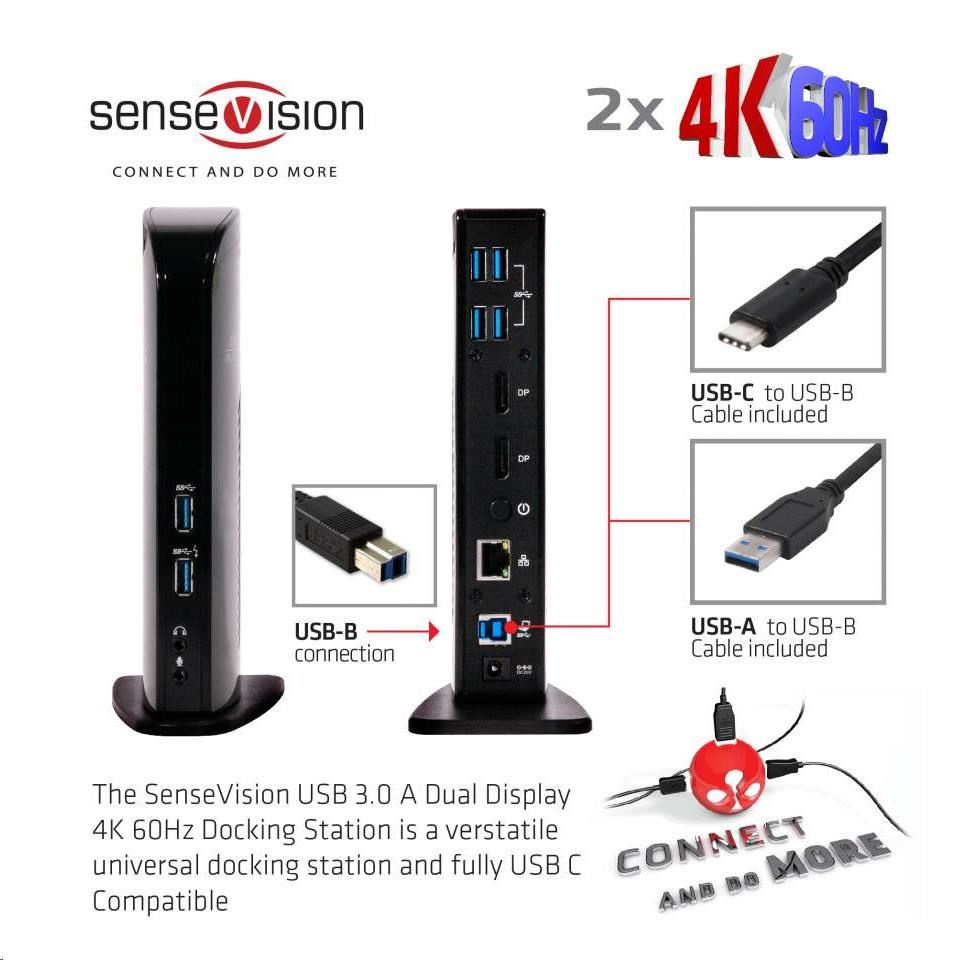

2x USB 3.1 Gen 1 cable (USB Type-A to B, 1 meter and USB Type C to B 1meter)
Quick install guide
|Supported Operating Systems ||Microsoft Windows 8.1/10 |
