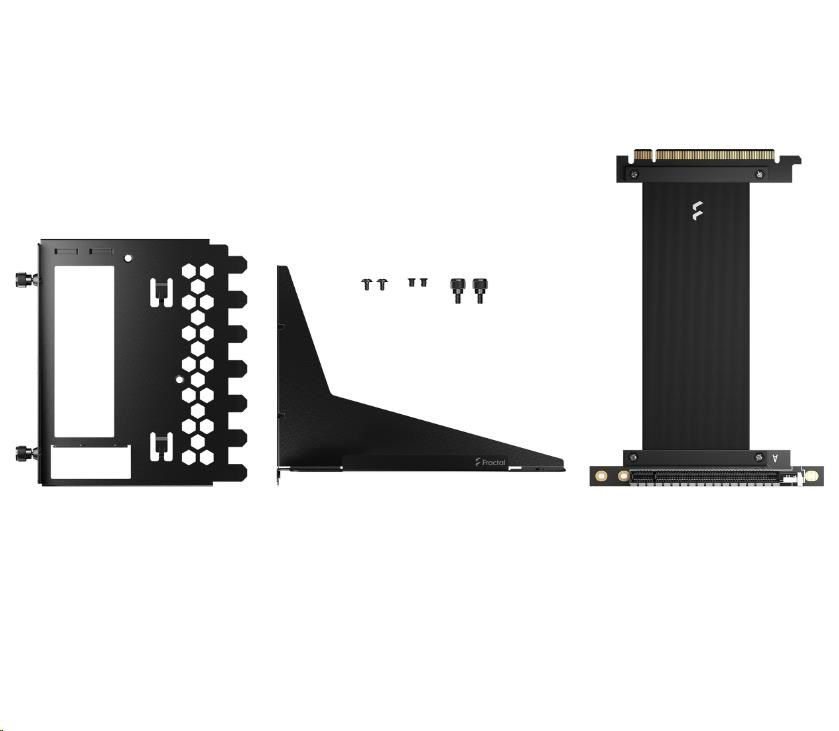

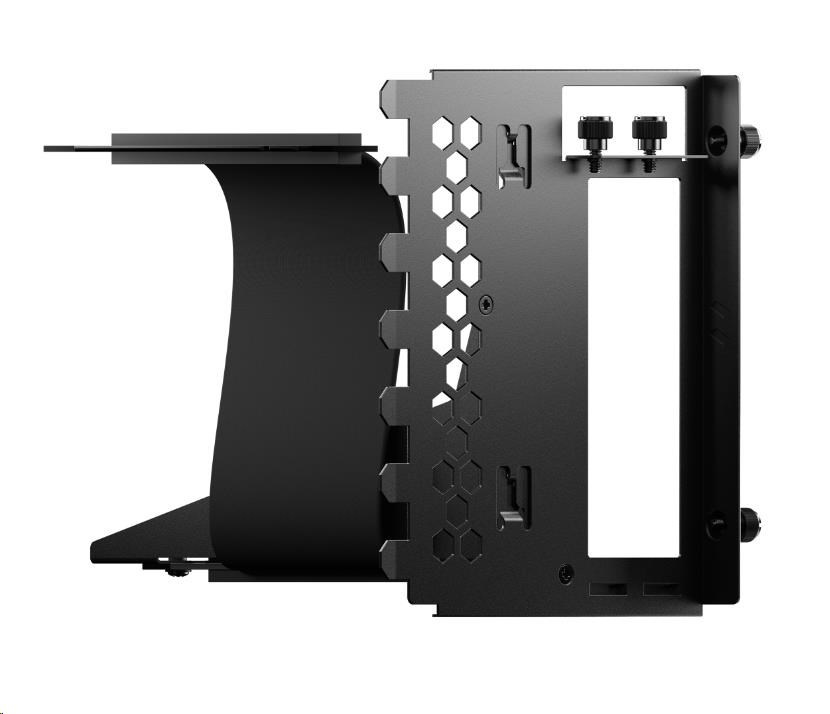

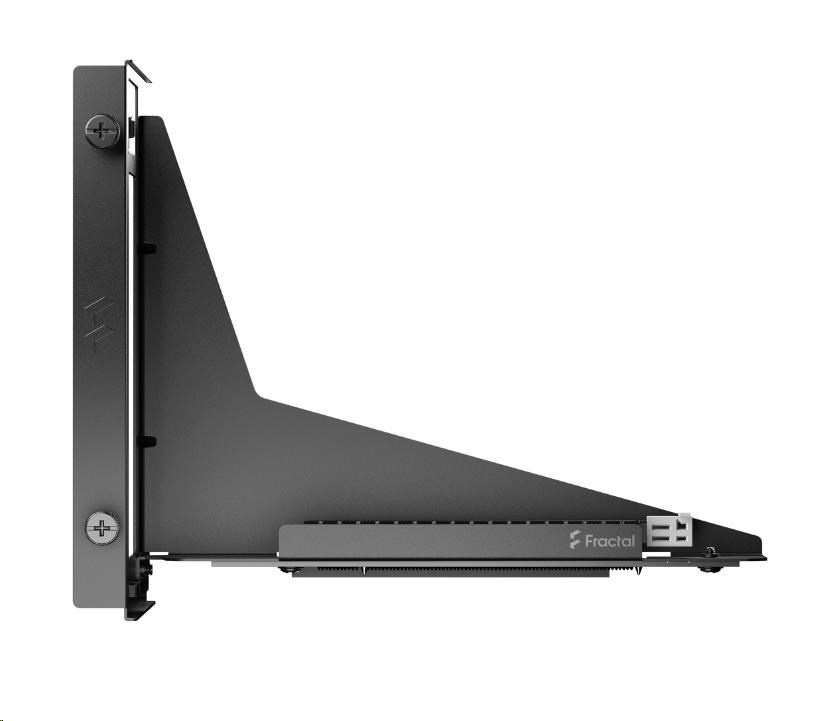

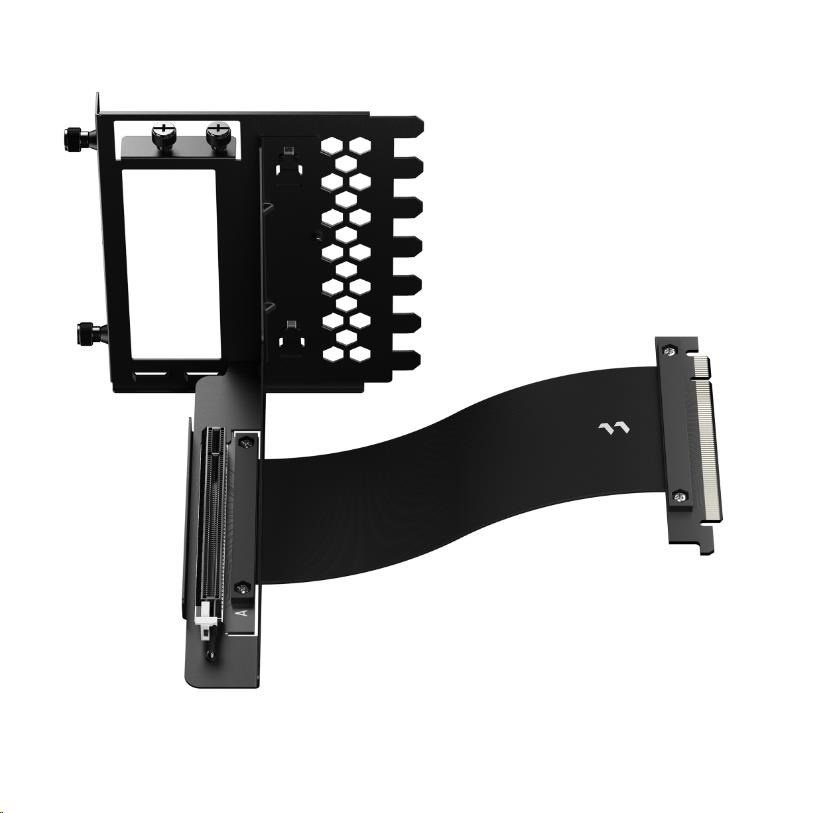

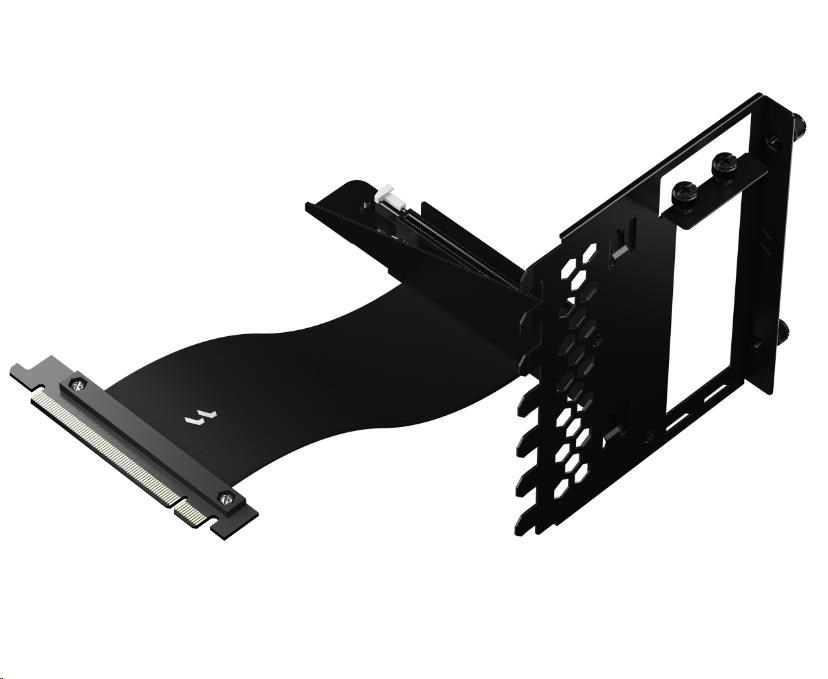

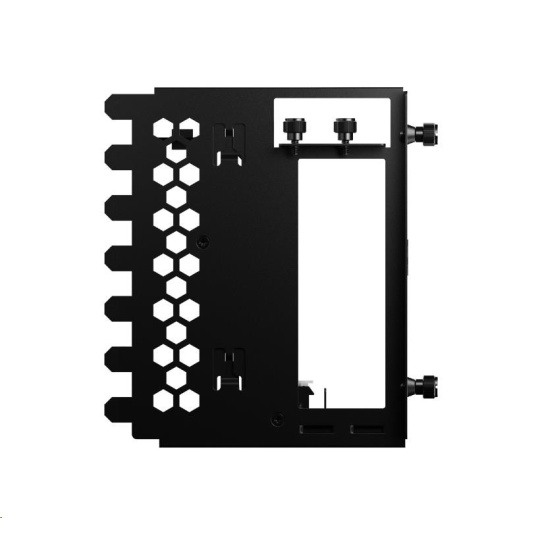

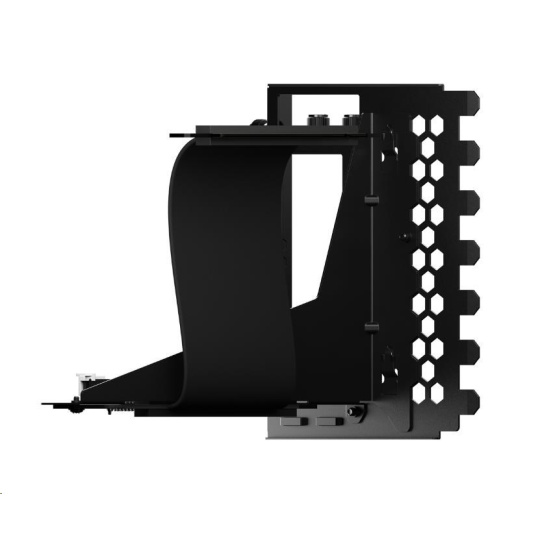

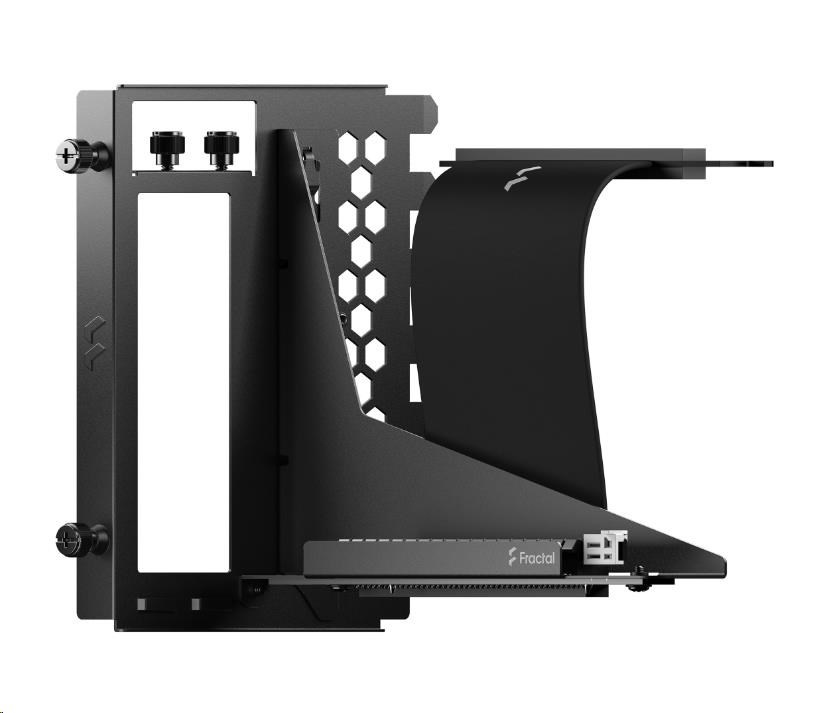

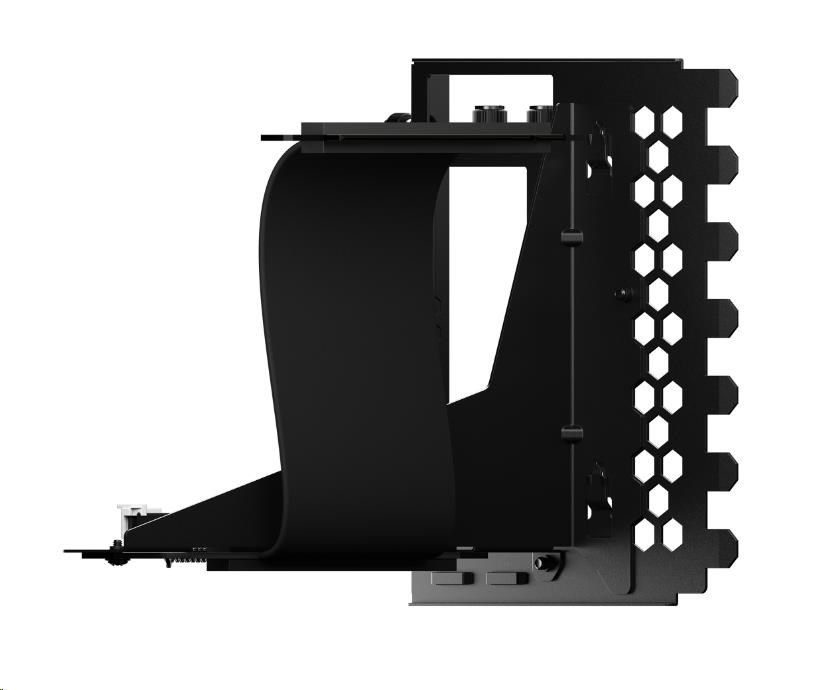

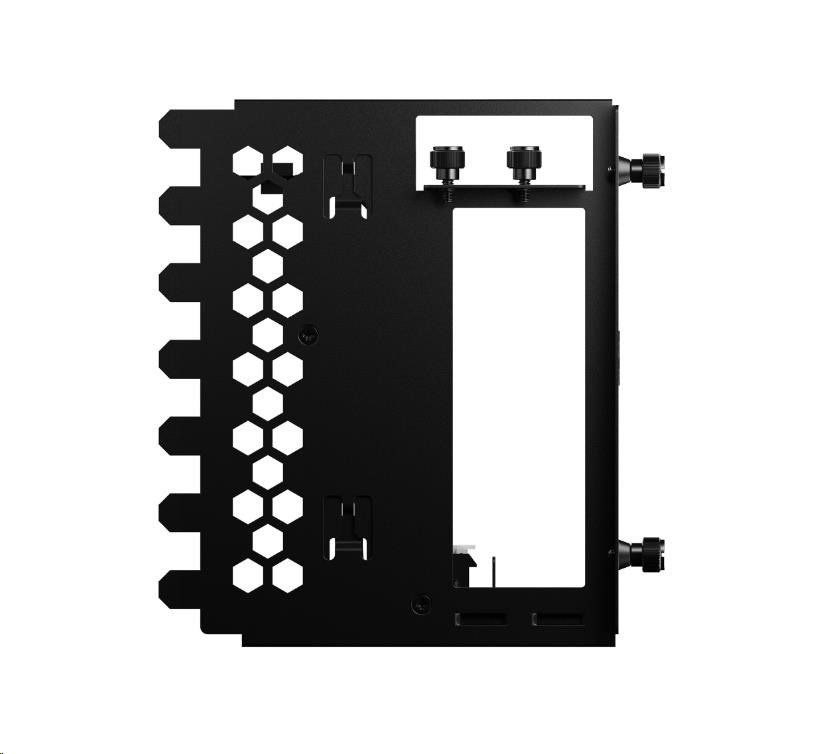

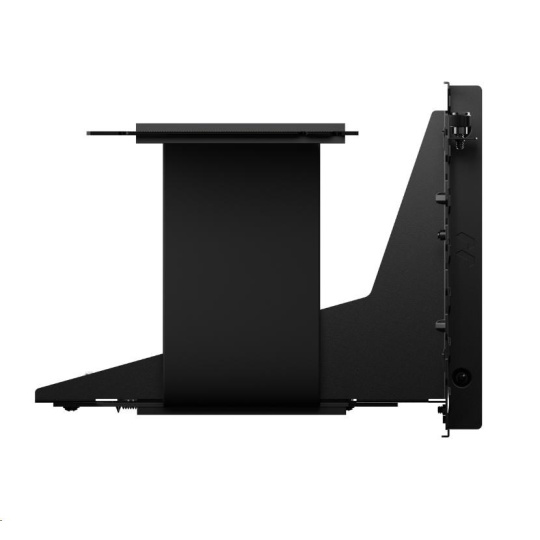

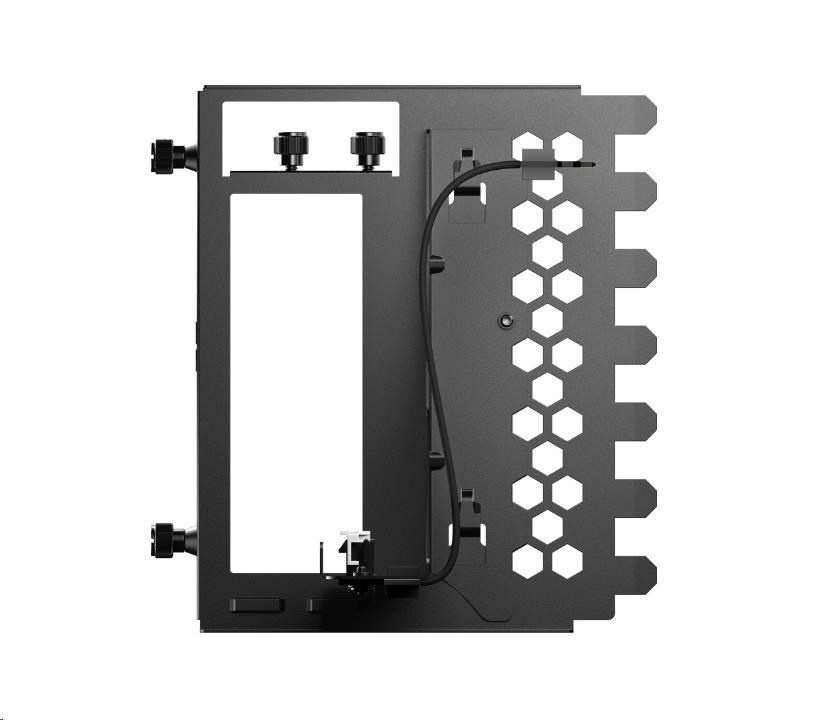

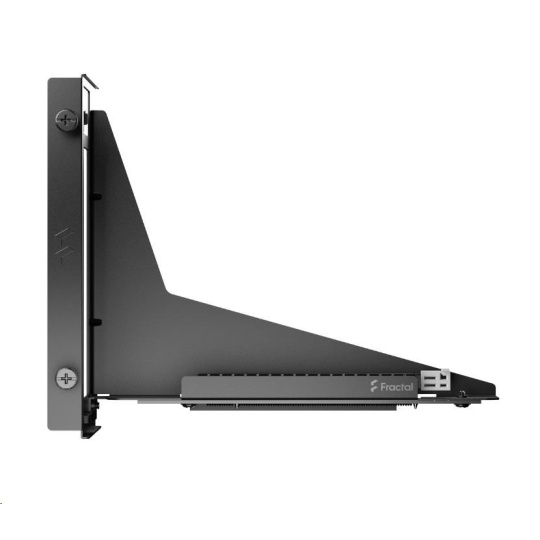

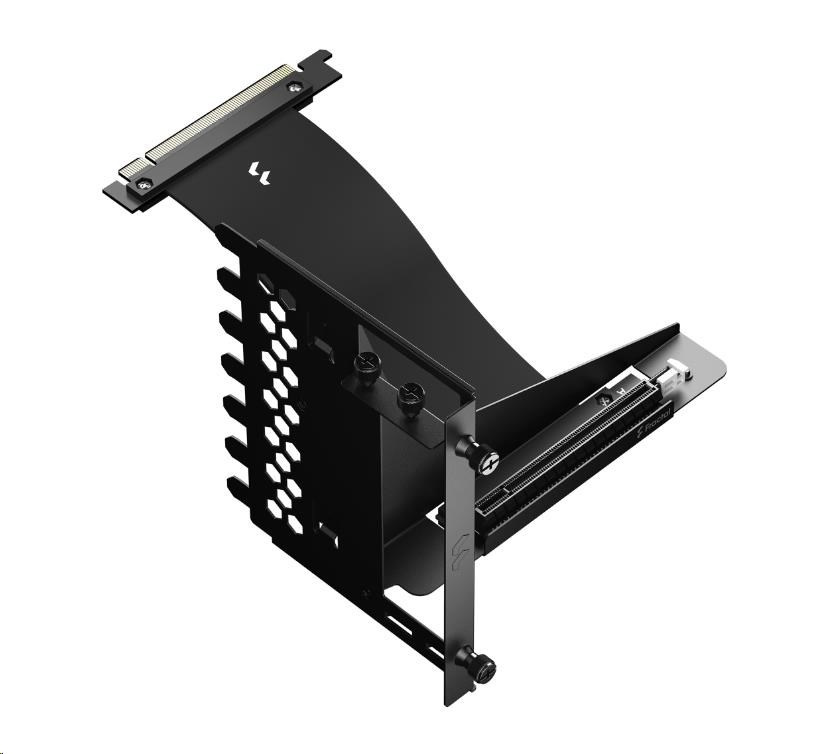

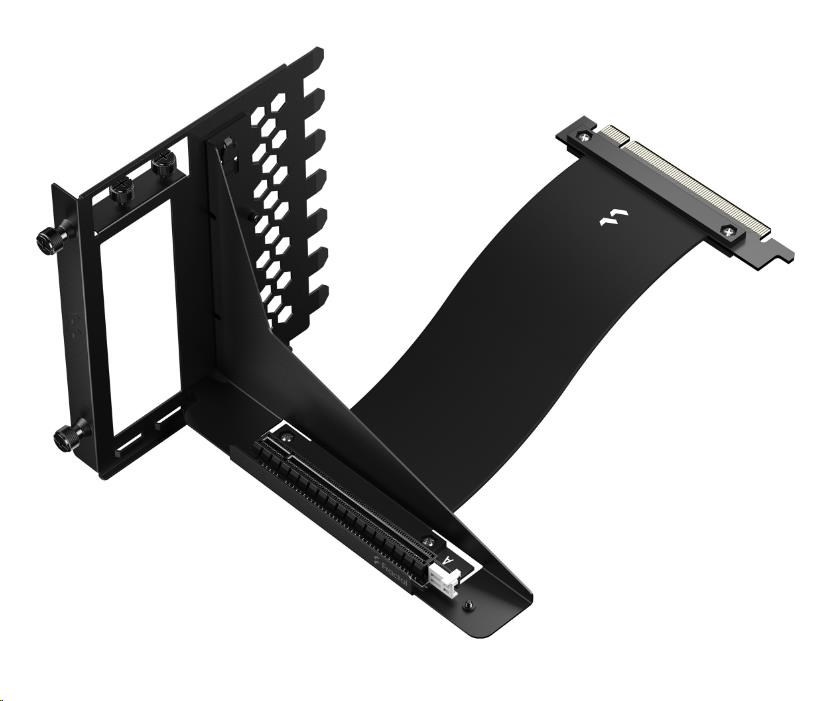

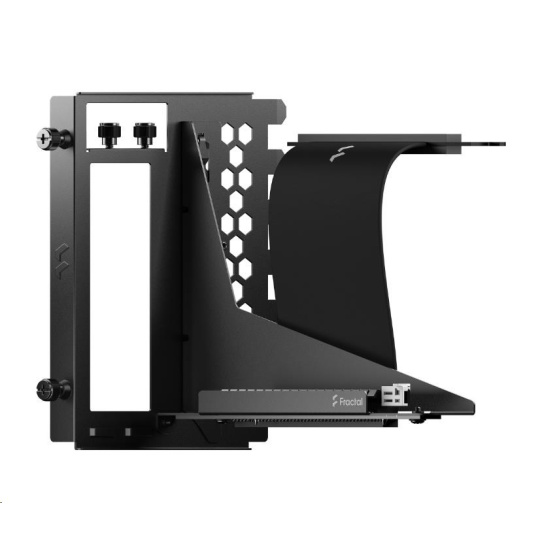

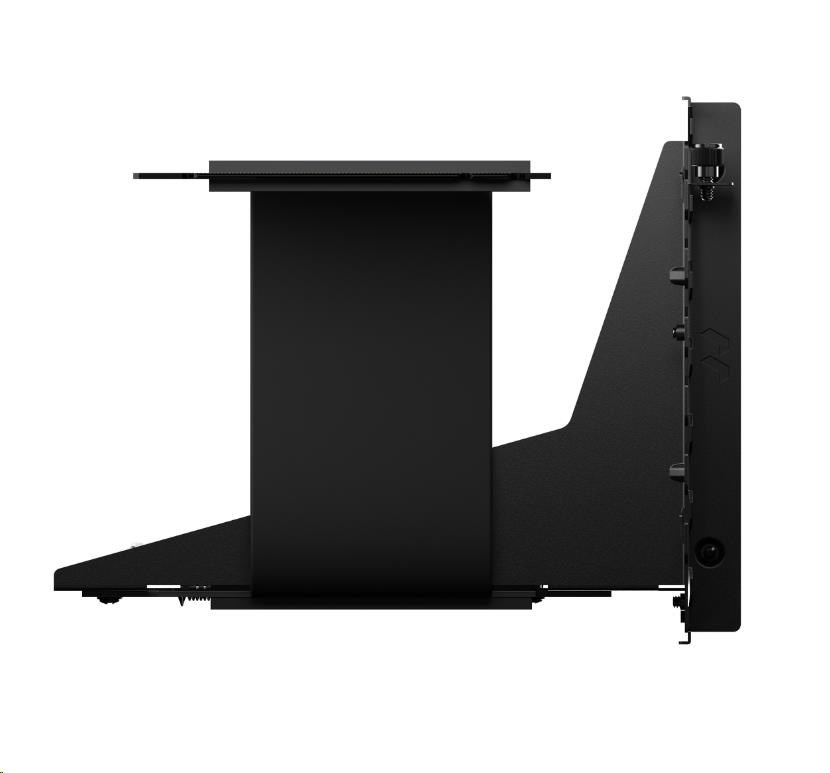

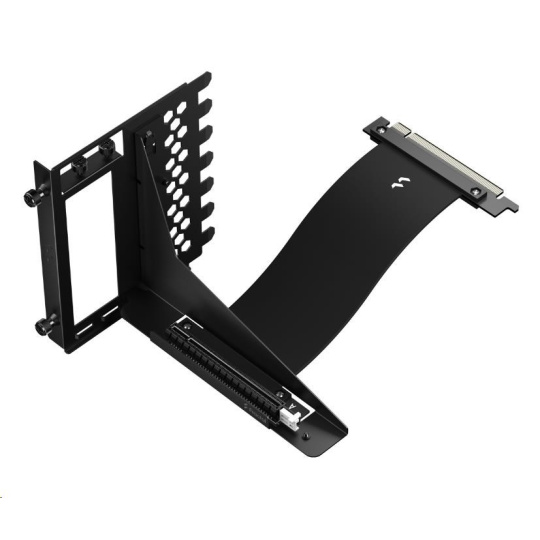

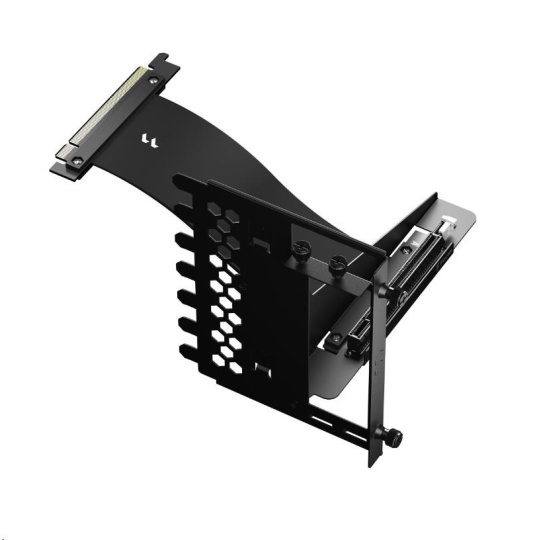

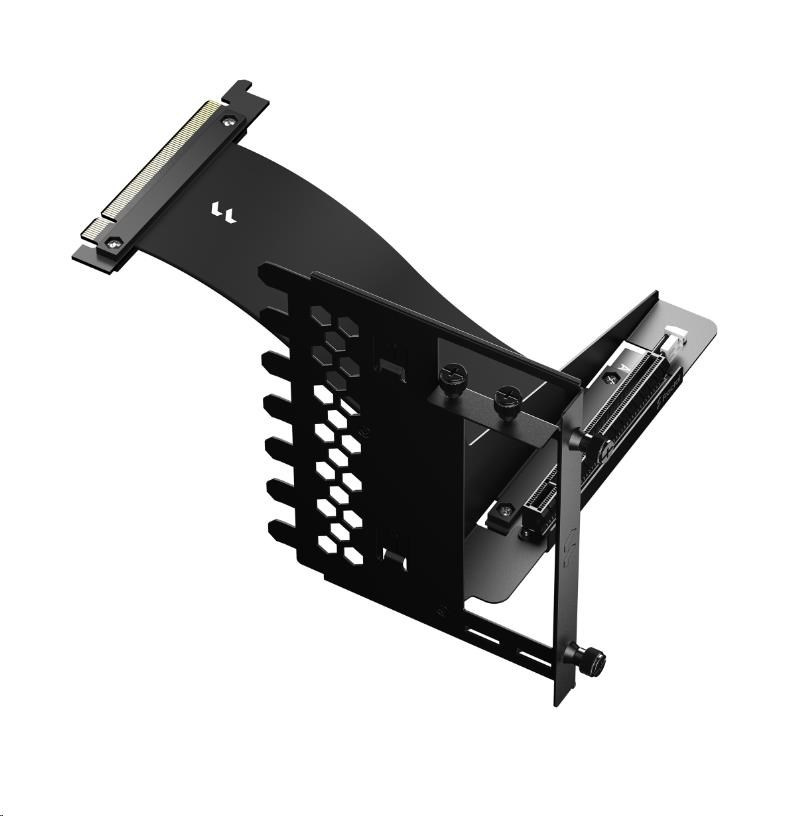

FRACTAL DESIGN držák Flex VRB-20, Vertical riser bracket
Flex B-20
The Flex B-20 bracket is a great supplement to your case, allowing you to mount your GPU vertically. This makes Flex B-20 an attractive companion to select Fractal cases like the Define 7 Compact, Define 7, Define 7 XL, Meshify 2 Compact, Meshify 2, Meshify 2 XL and Torrent.
- Fits ATX cases with bridgeless expansion slot covers (no bars between slots), such as the Define 7 Compact, Define 7, Define 7 XL, Meshify 2 Compact, Meshify 2, Meshify 2 XL and Torrent
- Supports full-length GPUs with single or dual-slot brackets and coolers of any size
- Places the GPU away from the side panel
TECHNICAL SPECIFICATIONS
| GPU support | Any PCIe compatible card with single or dual-slot bracket (no maximum cooler height) |
| Case requirements | 7 available bridgeless expansion slots (no bars between slots when covers are removed) |
| Captive thumbscrews | Two, for installation of the riser into the case |
| PCIe standard | PCIe Gen 3.0 x16* |
| Cable length | 200 mm |
| Cable width | 57 mm |
| Cable color | Matte Black |
| Bracket color | Black powder coated steel |
| Warranty | 2 years |
| *Note | If you wish to use the Flex B-20 PCIe 3.0 riser cable together with a PCIe 4.0 compatible motherboard and graphics card, make sure you first set the PCIe Slot Configuration in your motherboard BIOS or UEFI to PCIe Gen3 for best system stability. |
.
